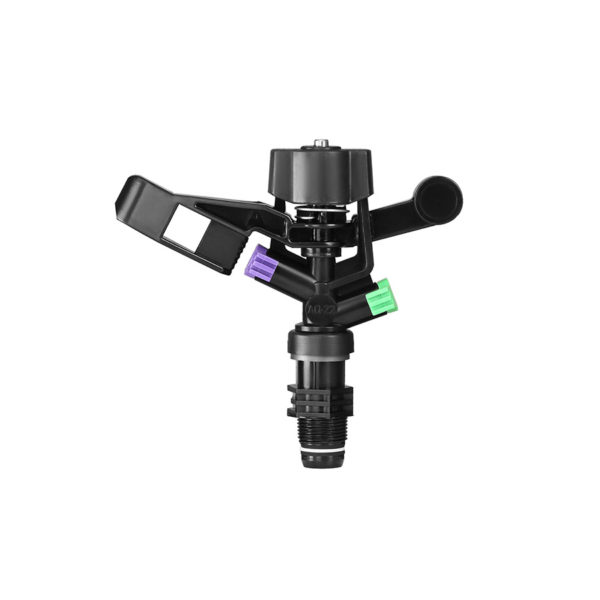

Plastic Impact Sprinkler Automat 5022 – 15mm Male – Full Circle

Features • Available with 15mm Male Thread Connection • Color coded nozzles for easy identification of size • Body, Arm, Bearing & Nozzles made of Delrin for durability • Specially designed Bayonet nozzles • Stainless Steel Springs & Pivot Pin • Trajectory Angle: 24° Model: AQ-22   Commonly Used in K-line Pasture Irrigation Nozzle (mm) Pressure Coverage Diameter Discharge Rate Kg/cm2 Psi mtr. ft. LPM GPM 3.0 x 1.8 2.0 28.44 21.0 68.88 11.94 3.15 2.5 35.55 21.6 70.85 13.43 3.55 3.0 42.66 21.6 70.85 14.78 3.90 3.5 49.77 22.0 72.16 15.86 4.19 4.0 56.88 22.0 72.16 17.13 4.53 Nozzle (mm) Pressure Coverage Diameter Discharge Rate Kg/cm2 Psi mtr. ft. LPM GPM 4.0 x 1.8 2.0 28.44 22.0 72.16 19.08 5.04 2.5 35.55 22.4 73.47 21.25 5.61 3.0 42.66 23.0 75.44 23.58 6.23 3.5 49.77 23.6 77.41 25.67 6.78 4.0 56.88 24.0 78.72 27.50 7.26
