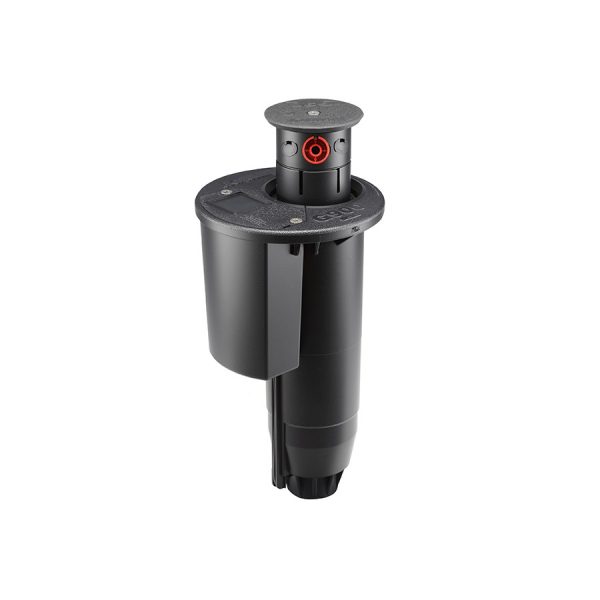

Overview Hunter G900 Series golf rotors feature the perfect combination of durability, efficiency and user flexibility. Available in various TTS and DIH configurations, they offer a solution for any long-range on-course watering need. Patented TTS technology allows for every serviceable element of the rotor to be accessed through the top. Mechanical and electrical, big and small, you can get to every component simply from the playing surface. That means there are no more digging and no more unsightly scars. Features Full circle water lubricated gear-drive Exclusive PressurePort™ technology delivers uniform and consistent coverage Closed-case design helps prevent sticking riser and leaking seals Flexible performance with 16 nozzles to choose from G990 G995 FEATURES ACME Threaded Inlet Size 1½" 1½" Radius (m) 22.3 - 31.4 22.9 - 31.7 Flow Rate (m3/hr) 6.93 - 18.92 6.7 - 19.04 Flow Rate (l/min) 115.2 - 315.3 111.7 - 317.2 Recommended Pressure Range (Bar) 5.5 - 8.3 5.5 - 8.3 Recommended Pressure Range (kPa) 551 - 827 551 - 827 Precipitation Rate (mm/hr, 360°) 16.2 - 22.4 14.8 - 22.3 Dual Trajectory Capability 22.5º & 15º 22.5º & 15º Check Height (m., C.O.M. Models) 8 8 Nozzle Options 16 16 Component Exchange Warranty 3 Years 3 Years ADVANCED FEATURES Contour "Back-Nozzle" Capability Full-Circle Opposing Nozzles Exclusive PressurePort™ Nozzle Technology Yardage Marker Capable Check-O-Matic Models Electric Valve-In-Head Models Exclusive - DIH Decoder-In-Head Models Exclusive - TTS Total Top Serviceability Exclusive - Made in The USA G990 Pop-up height: 7.5 cm Overall Height: 34 cm Flange Diameter: 19 cm Female inlet: 1½" Acme Specifications Discharge rate: 6.93 - 18.92 m3/hr, 115.2 - 315.3 l/min Radius: 22.3 - 31.4 m Pressure range: 5.5 - 8.3 Bar, 551 - 827 kPa Pressure rating: 1000 kPa TTS G900 SERIES ADVANCED FEATURES Hunter's revolutionary TTS (Total Top Servicing) design offers exclusive and unique features and benefits that are designed with serviceability and innovation in mind. LARGE & FLEXIBLE YARDAGE MARKER OPTIONS Standard recessed area for placard markers. Optional raised marker for popular engraved and paint-filled markers. DUAL TRAJECTORY COLOR-CODED NOZZLES All G900 Series rotors have colour-coded nozzles for easy identification and, the nozzle numbers approximate the flow in gallons per minute. Choose from the eight standard 22.5-degree trajectory nozzles or the eight 15 degree nozzles for low-angle applications. Standard 22.5-degree trajectory nozzles Low-angle 15-degree trajectory nozzles EXCLUSIVE DIH CAPABILITY Factory configured Decoder-In-Head (DIH) rotors are available for all 800 Series and 900 Series valve-in-head TTS rotors. All DIH rotors include Hunter's patented Total Top Programming technology. Whether on the workbench or after installation, the decoder station can be programmed without rotor dis-assembly.
