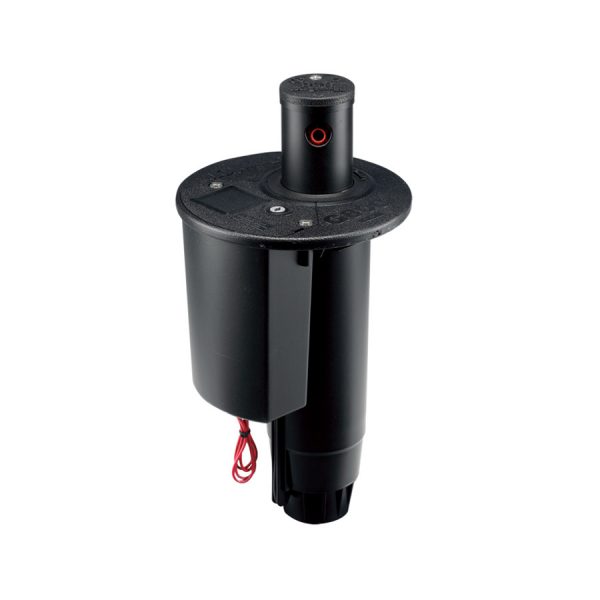

G800 Series rotors are reliable and efficient mid-range performers that provide unsurpassed distribution with a wide range of flow and radius capabilities. They are available in an array of TTS and DIH configurations. Patented TTS technology allows for every serviceable element of the rotor to be accessed through the top. Mechanical and electrical, big and small, you can get to every component without disturbing the playing surface. That means there are no more digging and no more unsightly scars. Features Full circle water lubricated gear-drive Exclusive PressurePort™ technology delivers uniform and consistent coverage Closed-case design helps prevent sticking riser and leaking seals Flexible performance with 6 nozzles to choose from G880 G884 G885 G835 FEATURES ACME Threaded Inlet Size 1½" 1½" 1½" 1½" Radius (m) 20.4 - 26.8 15 - 28 13.1 - 27.7 5.5 - 15.2 Flow Rate (m3/hr) 5.11 - 13.15 3.3 - 13.2 1.86 -13.06 0.43 - 2.91 Flow Rate (l/min) 85.2 - 219.2 54.6 - 220.6 31.0 - 217.7 7.2 - 48.5 Recommended Pressure Range (bars) 4.5 - 6.9 2.8 - 6.9 3.4 - 6.9 2.8 - 4.5 Recommended Pressure Range (kPa) 450 - 689 344 - 689 344 - 689 275 - 450 Precipitation Rate (mm/hr, 360°) 12.3 - 21.1 14.7 - 19.0 10.8 - 19.9 10.9 - 18.0 Nozzle Trajectory 25º 22.5º & 15º 22.5º & 15º Multiple Check Height (m., C.O.M. Models) 8 m 8 m 8 m 8 m Nozzle Options 6 19 21 8 Component Exchange Warranty 3 Years 3 Years 3 Years 3 Years Component Exchange Warranty with Matching HSJ Swing Joint Purchase 5 Years 5 Years 5 Years 5 Years ADVANCED FEATURES Exclusive PressurePort™ Nozzle Technology Part and Full-Circle in One Model Full-Circle Opposing Nozzles Yardage Marker Capable Check-O-Matic Models Electric Valve-In-Head Models Exclusive - DIH Decoder-In-Head Models Exclusive - TTS Total Top Serviceability Exclusive - Made in The USA TTS G800 SERIES ADVANCED FEATURES Hunter's revolutionary TTS (Total Top Servicing) design offers exclusive and unique features and benefits that are designed with serviceability and innovation in mind. LARGE AND FLEXIBLE YARDAGE MARKER OPTIONS Standard durable recessed area for placard markers Optional raised marker for popular engraved and paint-filled markers. EXCLUSIVE DIH CAPABILITY Factory configured Decoder-In-Head (DIH) rotors are available for all 800 Series and 900 Series valve-in-head TTS rotors. All DIH rotors include Hunter's patented Total Top Programming technology. Whether on the workbench or after installation, the decoder station can be programmed without rotor dis-assembly. G800 SERIES COLOR-CODED NOZZLES All G870, G875 and G880 rotors have colour-coded nozzles for easy identification and, the nozzle numbers approximate the flow in gallons per minute.
