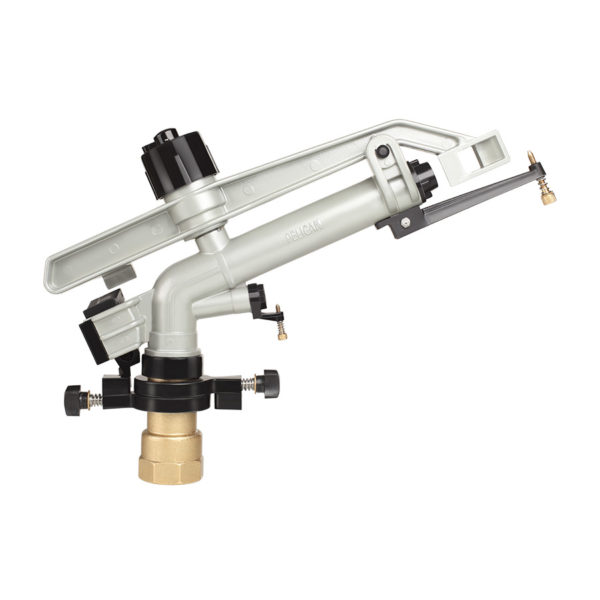

Model: Pelican Suitable for Pasture Irrigation, Crops, Screened Effluent, and Dust Suppression Capable of Full and Part Circle Operation Includes 12mm, 14mm and 16mm Nozzles. Features Aluminium pressure die casted body and arm Heavy duty brass nut, tube, nozzles and diffusor screw Stainless steel pivot pin, springs, nut and bolt Engineered plastic Jet breaker screw to change the water jet from heavy droplets to fine spray Recommended Pressure 20 - 50 metres Recommended spacing: up to 36m Trajectory Angle: 24o Two Year Warranty Specifications Nozzle (mm) Pressure Coverage Diameter Discharge Rate 14 X 5 Kg/m2 Psi mtr. ft. LPM GPM 2 28.44 42 137.76 195 51.51 3 42.66 50 164.00 239 61.13 4 56.88 58 190.24 277 73.16 5 71.10 62 203.36 309 81.62
