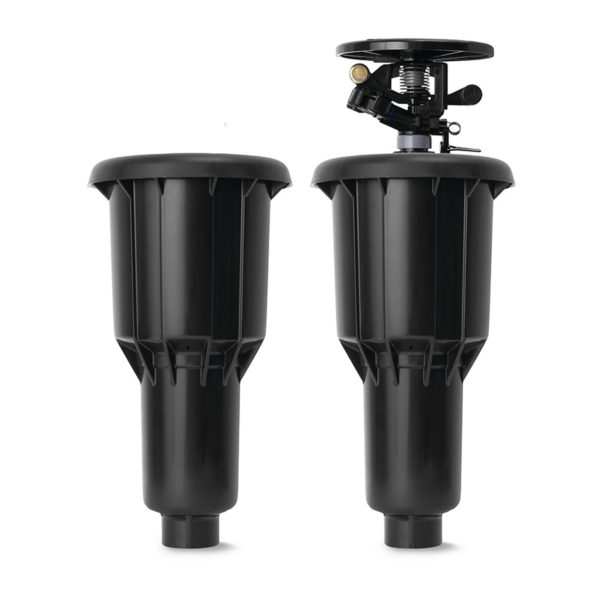

Features: Proven impact drive. Straight-through flow for superior performance in dirty water. Heavy-duty plastic case with sturdy, reinforced ribbed design. Double-weighted arm for slower rotation and increased distance of throw. Adjustable arm spring for low-pressure and low-flow operation. 360° Full-circle OR arc adjustable from 20° to 340°. Inlet filter screen and pressure-activated wiper seal protect the internal assembly from debris to ensure positive pop-up and retraction. 15 mm side inlet & 20 mm bottom inlet. Side or combination bottom inlet for design flexibility. Side inlet installation is not recommended in freezing climates. Optional internal Seal-A-Matic (SAM) prevents puddling and erosion caused by low head drainage and saves water. Serviceable through the top of the case. The Rainbird Installation Wrench is useful for this. Three-year trade warranty. Specifications: Precipitation Rate: 7 to 30 mm/h Radius: 6.7 to 13.7 m Radius with Radius Reduction Screw: 5.4 m Pressure: 1.7 to 4.1 Bar Flow: 0.34 to 1.91 m3/h 15 mm side inlet & 20 mm bottom inlet Overview These heavy-duty impacts have the strength and performance of industrial and commercial products yet are easy to install and operate. The Maxi-Paw's powerful throw permits maximum spacing and offers superior close-in watering and uniform water distribution. Low-pressure loss and an efficient, straight-through flow design conserve energy and are ideal for dirty water applications. The optional Seal-A-Matic™ prevents run-off, puddling, and erosion caused by low head drainage. Brand: Rainbird Connection: 15mm side inlet & 20mm bottom inlet Dimensions Overall height: 23.6 cm Pop-up height: 7.6 cm Exposed surface diameter: 12.7 cm
