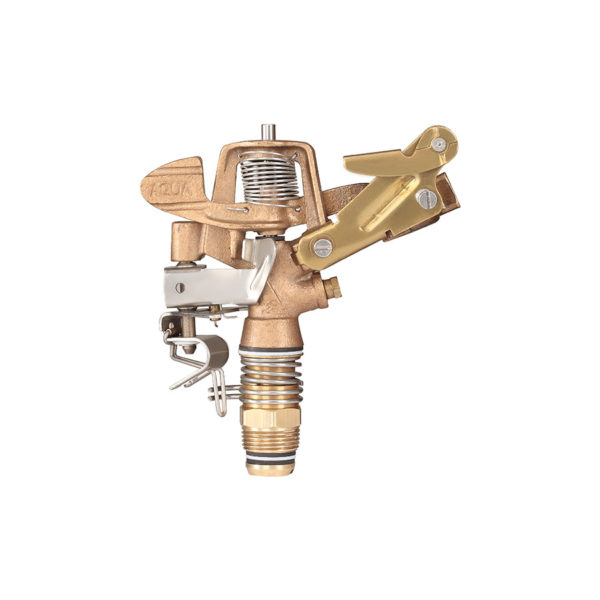

Brass Impact Sprinkler Automat – 20mm Male – Part Circle
$32.43
$56.1
Model: AQ-20PC with Diffuser Arm All crops irrigation compatible by overhead irrigation on solid set, permanent set, hard lines, portable lines, wheel lines and mechanically moved systems such as centre pivot. Area where strong wind is prevalent, nozzles with stream straightening vane. Features 20mm BSP male threaded Durable bronze body and arm Heavy duty brass nut and tube Stainless steel pivot pin and spring Recommended pressure: 2 – 5 kg/cm2 Recommended spacing: up to 15m Trajectory angle: 27o Diffuser arm to allow adjustment between heavy drops and fine spray Nozzle Options 4.36mm x 3.17m Specifications Nozzle (mm) Pressure Coverage Diameter Coverage Diameter with Vane Discharge Rate Kg/m2 Psi mtr. ft. mtr. ft. LPM GPM 4.36 X 3.17 2 28.44 22.8 74.78 23.4 76.75 25.6 6.76 2.5 35.55 26 85.28 26.6 87.25 28.8 7.61 3 42.66 28 91.84 28.8 94.46 32.4 8.56 3.5 49.77 29 95.12 29.6 97.09 34.3 9.06 4 56.88 30.2 99.06 31 101.68 36.6 9.67 4.5 63.99 31 101.68 31.4 102.99 39.2 10.35 5 71.1 31.6 103.65 32.2 105.62 41.8 11.04
