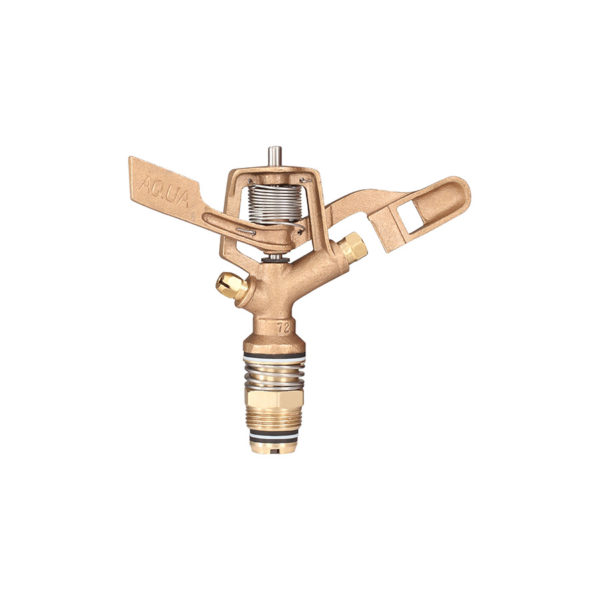

Brass Impact Sprinkler Automat – 20mm Male – Full Circle

$23.09 $32.1

Features 20mm BSP male threaded Durable bronze body and arm Heavy duty brass nut and tube Stainless steel pivot pin and spring Recommended pressure: 2 - 5 bar Recommended spacing: up to 15m Trajectory Angle: 27o 450 gram weight (quality brass) Nozzle Options 4.36mm x Blank 4.36mm x 3.17mm Model: AQ-20 4.36mm x blank nozzle For overhead irrigation of crops and pasture, commonly used for K-line and Long Lateral Systems. Dust suppression systems Specifications Nozzle (mm) Pressure Coverage Diameter Coverage Diameter with Vane Discharge Rate Bar Psi mtr. ft. mtr. ft. LPM 4.36 X Blank 2 28.44 22.8 74.78 23.4 76.75 16.02 2.5 35.55 26 85.28 26.6 87.25 18 3 42.66 28 91.84 28.8 94.46 20.8 3.5 49.77 29 95.12 29.6 97.09 21.5 4 56.88 30.2 99.06 31 101.68 23.20 4.5 63.99 31 101.68 31.4 102.99 25.3 5 71.1 31.6 103.65 32.2 105.62 27.4 Nozzle (mm) Pressure Coverage Diameter Coverage Diameter with Vane Discharge Rate Kg/m2 Psi mtr. ft. mtr. ft. LPM 4.36 X 3.17 2 28.44 22.8 74.78 23.4 76.75 25.6 2.5 35.55 26 85.28 26.6 87.25 28.8 3 42.66 28 91.84 28.8 94.46 32.4 3.5 49.77 29 95.12 29.6 97.09 34.3 4 56.88 30.2 99.06 31 101.68 36.6 4.5 63.99 31 101.68 31.4 102.99 39.2 5 71.1 31.6 103.65 32.2 105.62 41.8
